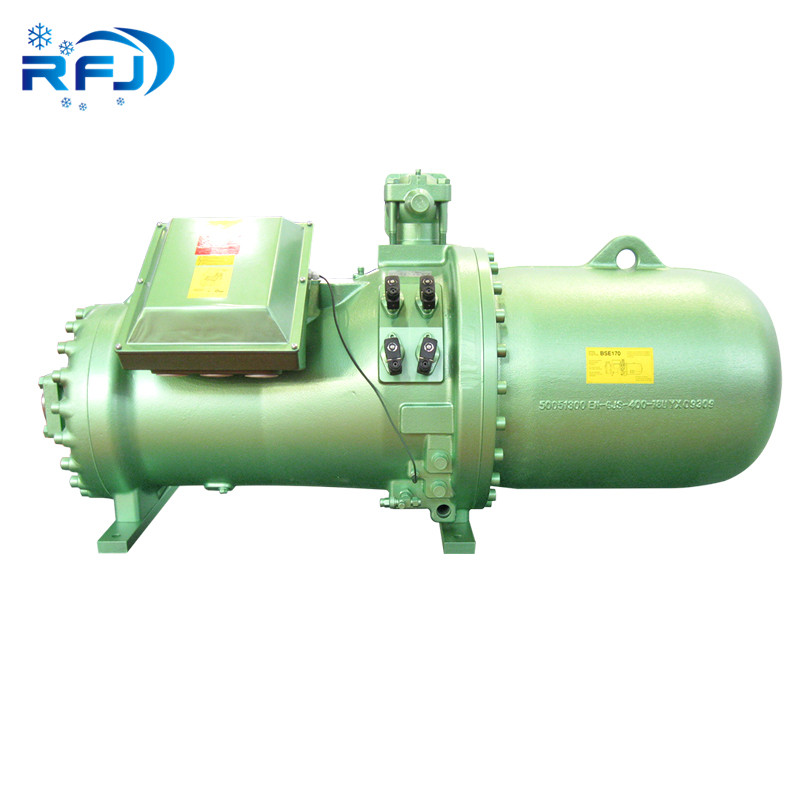

Bitzer screw compressor

Model

CFH Displ 60 HZ

Motor HP

CSH6553-50

165

50

CSH6563-60

205

60

CSH7553-70

238

70

CSH7563-80

274

80

CSH7573-90

311

90

CSH8553-110

380

110

CSH8563-125

433

125

CSH8573-140

495

140

CSH9553-180

645

180

CSH9563-210

742

210

CSH9573-240

844

240

CSH9583-280

971

280

CSH9593-300

1098

300

SI

IP

Displacement(2900 RPM 50 HZ)

315 m³/h

11131 CFH

Displacement(3500 RPM 60 HZ)

380 m³/h

13428 CFH

Weight

850 kg

1874 lb

Max,pressure(LP/HP)

19/28 bar

275/400 psi

Connection suction line

DN 100

4 1/8”

Connection discharge line

76mm-3 1/8”

76mm-3 1/8”

Motor Voltage(more on request)

380-415V PW-3-50HZ

440-480V PW-3-60HZ UL

Max operating current

185.0 A

185.0 A

Winding Radio

50/50

50/50

Starting current (Rotor locked)

520.0 A D/801.0 A DD

520.0 A D/801.0 A DD
