2.Product feature and application
50Hz date
Model Nominal Cap.(TR) Power input(kw) COP(W/W) E.E.R (Btu/h /W）
SZ090 7.5 6.45 3.16 10.8
SZ100 8 6.84 3.15 10.8
SZ115 9.5 8.49 3.16 10.8
SZ120 10 8.98 3.18 10.9
SZ160 13 11.77 3.28 11.2
SZ161 13 11.83 3.21 10.9
SZ175 14 12.67 3.17 10.8
SZ185 15 13.62 3.16 10.8
SZ240 20 18.60 3.18 10.9
3.Production details

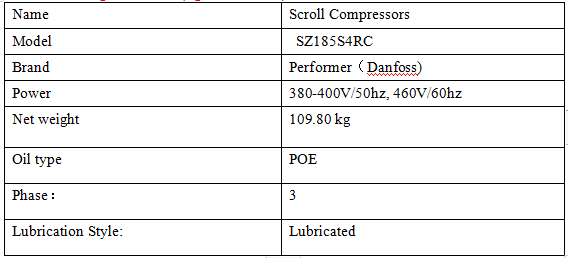

Technical data：
Diameter [mm]:266mm
Oil charge [L]: 6.2 L
Oil reference:160SZ
Fitting standard: ODF
Gauge port LP:Schrader
Discharge connection pipe size [in]：1 1/8 in
Glass mounting：Threaded
Factory HP [bar]: 33bar
Low Side Volume：28.7 L
Refrigerant charge [kg] [Max]：13.5 kg
Swept volume [cm3]：249.9 cm3
Maximum Operating Current [MOC]:35A
LRA:175A
MMT:35A
4.Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
5. Payment and Delivery
1)Payment:
1. T/T
2. Western Union
2)Delivery:
Here we guarantee on time delivery and if necessary,
we will provide you the best logistics solution for the goods to reach at your location on time.
.
6.FAQ
1). What is your delievery time?
---The time of delievery is 3-10 working days after payment.
2)What is your MOQ?
---Our MOQ is usually 1 set.
3). What is the price?
---The price is depends on the quantity
