Danfoss Performer Compressor

Performer Blue 12HP Scroll Compressors SM148T4VC

Product introduction
Performer Scroll Compressors
Model NO : SM148T4VC
Compressor power supply [V/Ph/Hz]：360-400/3/50 460/3/60
Brand technique：Scroll compressor
Motor protection：Internal overload protector
Capacity control：Fixed speed
Connection type： Brazed
Power connections: Screw 4.8 mm
Frequency [Hz]:50/60
Net weight：87 kg
LRA:145A
RLA:22.9A
Oil type：Mineral
Power Source: AC Power
Lubrication Style: Lubricated
Trademark:Perfomer (Danfoss)
Origin: China/France

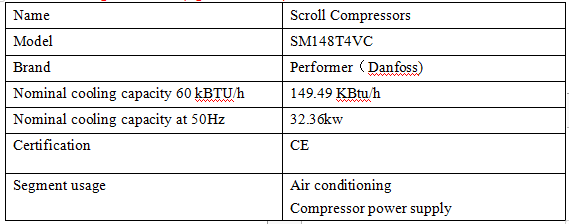

    1.Product parameter(Specification)

    2.Product feature and application
    Model          Power input(kw)    Capacity Qo(watt)    Displacement (m3/hr 1450rpm)
    SM084               6.12                          20400                19.92
    SM090               6.54                          21800                20.97
    SM100               6.96                          23100                22.13
    SM110               7.82                          25900                25.09
    SM120               8.96                          30100                28.99
    SM148               10.80                        36100                35.82
    SM160               11.60                        39100                37.69
    SM161               11.59                        39000                37.69
    SM175               12.46                       42000                40.54
    SM185               13.62                       45500                43.48
    3.Production details
    Oil charge [L]: 3.6 L
    Fitting standard: ODF
    Oil type：Mineral
    Type：SM
    Phase：3
    Refrigerant：R22
    Colour：Blue
    Discharge connection pipe size [in]：3/4 in
    Factory LP [bar]：25 bar
    Glass mounting：Threaded
    High Side TS Min:-35 °C
    Refrigerant charge [kg] [Max]：12.5 kg
    Swept volume [cm3]：199 cm3
    Maximum Operating Current [MOC]:29A
    Diameter [mm]:266mm


    4.Product qualification
    Certificate, certification, patent certificate:
    1)."Quality Management System Certification"
    2)."Shenzhen Science and Technology Enterprise Certification"
    3)."Refrigeration Equipment Air Conditioning Maintenance and
        Installation Enterprise Qualification Certificate"
